CNG / H₂
Software Module
Dedicated in-cab display screens and automated diagnostic reporting to assist the driver and technician.
Novico Fleet · Optional $100 Software Module

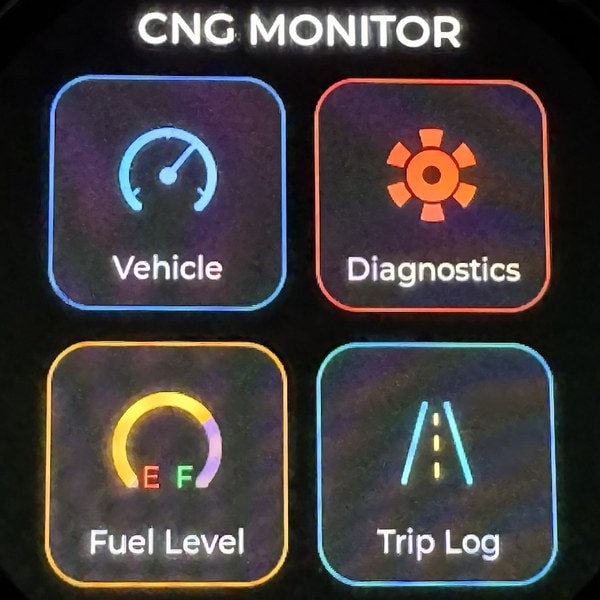

Novico Fleet CNG Monitor — Home Screen
Customizable In-Cab Display
8 Dedicated Display Screens
The CNG/H₂ module provides additional screens for monitoring temperature-compensated fuel levels and gaseous fuel engine diagnostics.

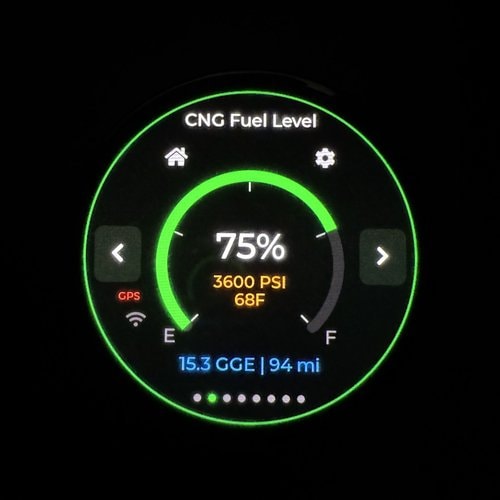

SCREEN 1
CNG Fuel Level
Temperature-compensated arc gauge with live tank pressure, fuel temperature, GGE remaining, and distance-to-empty in one view.

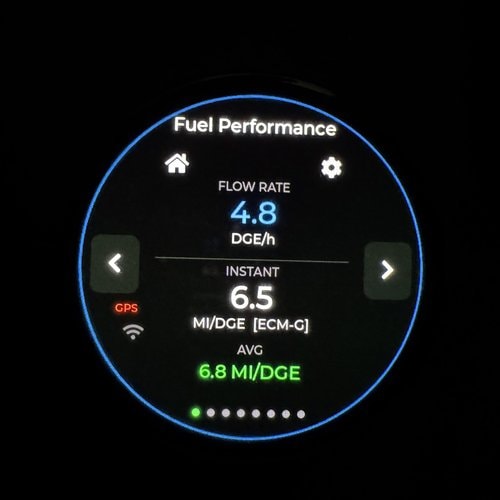

SCREEN 2
Fuel Performance
Flow rate (DGE/h) plus instantaneous and average economy. ECM-sourced when available, computed when not.

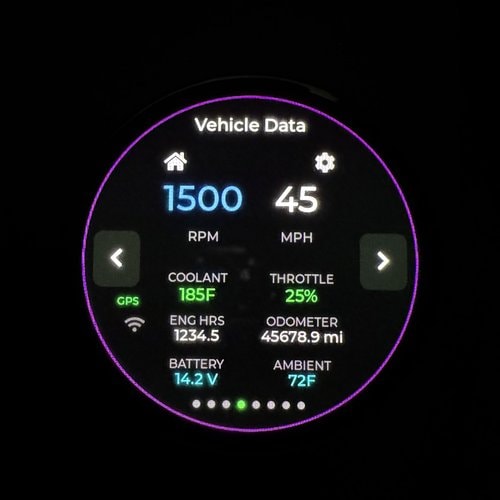

SCREEN 3
Vehicle Data
Live engine vitals at a glance — RPM, road speed, coolant, throttle, engine hours, odometer, battery, and ambient temp.

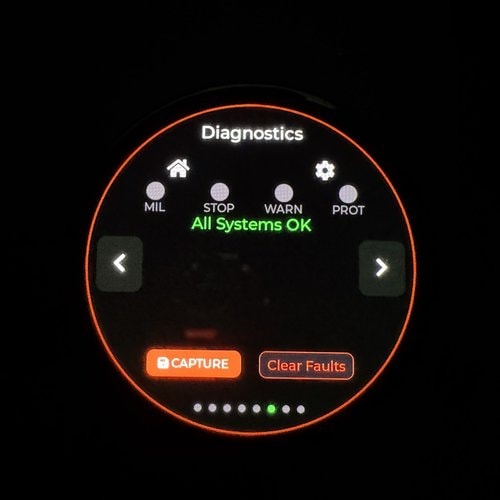

SCREEN 4
Diagnostics
MIL · STOP · WARN · PROT lamp status with a scrolling DTC list in plain English. Capture and clear faults from the dash.

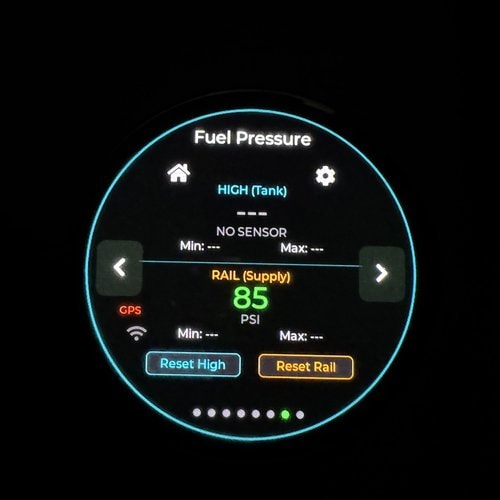

SCREEN 5
Fuel Pressure
Regulator health at a glance. Tracks both tank side high-pressure and engine-side low-pressure to alert of potential regulator anomalies and failures.

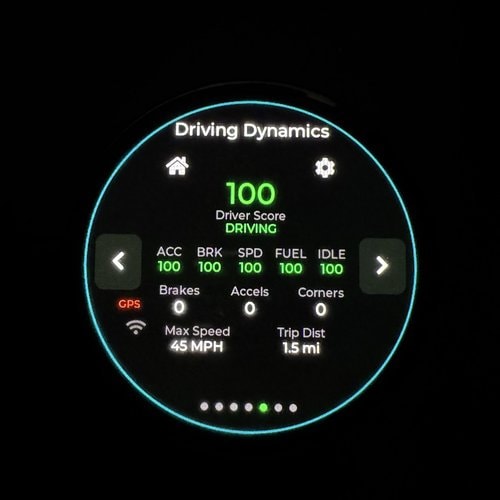

SCREEN 6
Driving Dynamics
Composite driver score with five sub-categories — accel, brake, speed, fuel, idle. Rolling event counts for hard brakes, accels, and corners.

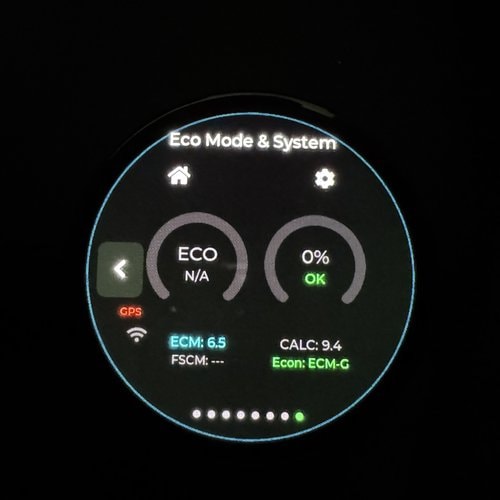

SCREEN 7
Eco Mode & System
Cummins Eco Mode and derate state at a glance. ECM- and FSCM-reported economy with computed cross-check.

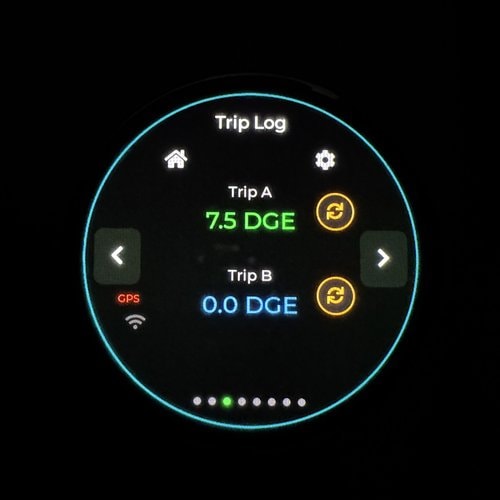

SCREEN 8
Trip Log
Two independent A/B trip counters in DGE/GGE.
Enhances OEM Cluster Capabilities
Enhances OEM Cluster Capabilities
The CNG/H₂ module is a software upgrade to any Novico Fleet unit. It unlocks capabilities that no standard telematics system and no OEM instrument cluster can match.
Temperature-Compensated Fuel Level
Uses the ideal gas law to calculate true fuel level from both pressure and temperature. Pressure-only gauges read 15–20% off in extreme weather. Novico Fleet reads within 2%.
Dual Pressure Monitoring
Regulator health at a glance. Tracks both tank side high-pressure and engine-side low-pressure to alert of potential regulator anomalies and failures.
OEM & Packager FSCM Integration
Bidirectional communication with Fuel System Control Modules. See FSCM fault codes on-screen, monitor fuel over-temperature, detect leaks between key cycles, and control Eco Mode from the gauge.
Cylinder Inspection Tracking
Tracks up to 8 CNG cylinders per FMVSS 304 and NGV2-2018 requirements. Alert states: OK → Due Soon → Overdue → Expired. Never miss a compliance deadline.
Leak Detection Between Key Cycles
Monitors pressure decay when the vehicle is off. Catches slow leaks that would never trigger a check-engine light — before they become a safety event or compliance violation.
Hydrogen Ready — Same Platform
As your fleet transitions from CNG to hydrogen, Novico Fleet transitions with it. The software is equipped to monitor gaseous fuel pressure sensors up to 350 bar (10,000 psi) with corresponding ideal gas law compensation algorithms for either fuel.
Technical Specifications
Built for the Real World
Available on any Novico Fleet unit — with or without Terminal Connectivity. Activate over the air in minutes.
| Specifications | |
|---|---|
| Pressure Range | 0 – 10,000 PSI |
| Fuel Level Accuracy | ±2% (temp-compensated) |
| Cylinder Tracking | Up to 8 cylinders |
| Compliance | FMVSS 304 / NGV2-2018 |
| Display | 1.85″ IPS or 1.75″ AMOLED |
| Activation | OTA Software Upgrade |
Ready to Add CNG / H₂ Intelligence?
The CNG/H₂ module is a software upgrade to any Novico Fleet unit. No new hardware required in most configurations.
